Your organization already had a VPC(10.10.0.0/16) setup with one public(10.10.1.0/24) and two private subnets – private subnet 1 (10.10.2.0/24) and private subnet 2 (10.10.3.0/24). The public subnet has the main route table, and two private subnets have two different route tables respectively. AWS sysops team reports a problem starting the EC2 instance in private subnet 1 cannot communicate to the RDS MySQL database on private subnet 2. What are the possible reasons? (choose 2 options)

Answer options:

A.One of the private subnet route table’s local route has been changed to restrict access only within the subnet IP range.
B.RDS security group inbound rule is incorrectly configured with 10.10.1.0/24 instead of 10.10.2.0/24.
C.10.10.3.0/24 subnet`s NACL is modified to deny inbound on port 3306 from subnet 10.10.2.0/24
D.RDS Security group outbound does not contain a rule for ALL traffic or port 3306 for 10.10.2.0/24 IP range.

Correct Answer: B, C
 For
Option A, for any route table, the local route cannot be edited or deleted.
AWS Docs says:
"Every route table contains a local route for communication within the VPC over IPv4. If your VPC has more than one IPv4 CIDR block, your route tables contain a local route for each IPv4 CIDR block. If you`ve associated an IPv6 CIDR block with your VPC, your route tables contain a local route for the IPv6 CIDR block. You cannot modify or delete these routes."
https://docs.aws.amazon.com/AmazonVPC/latest/UserGuide/VPC_Route_Tables.html#RouteTa bles
For Option B, possible because the security group is configured with a public subnet IP range instead of a private subnet 1 IP range, and EC2 is in private subnet 1. So EC2 will not be able to communicate with RDS in private subnet 2.
Option C is correct.

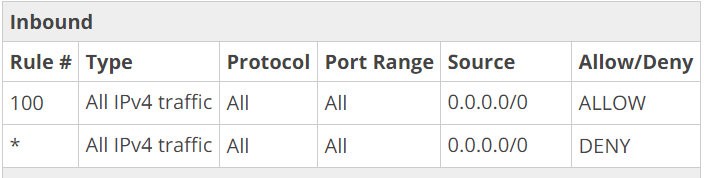

https://docs.aws.amazon.com/AmazonVPC/latest/UserGuide/VPC_ACLs.html#default-network- acl
Option D is not correct because Security Groups are stateful. If you send a request from your instance, the response traffic for that request is allowed to flow in regardless of inbound security group rules. Responses to allowed inbound traffic are allowed to flow out, regardless of outbound rules.
https://docs.aws.amazon.com/AmazonVPC/latest/UserGuide/VPC_SecurityGroups.html#VPCSecurityGroups
