Your organization is planning to develop a web application containing a Web Server and an RDS Instance. This application will be accessed from the internet. Your organization asked you to architect the solution on AWS. Your existing AWS environment already has a VPC with a private subnet and public subnet which has a route to the internet through Internet Gateway. What would be the best and cost-effective solution you can provide?

Answer options:

A.A bastion host in public subnet, Web Server EC2 in private subnet, RDS instance in private subnet.
B.A bastion host in public subnet, Web Server EC2 in public subnet with Elastic IP, RDS instance in private subnet.
C.A Bastion host in public subnet, Web Server EC2 in private subnet with NAT Gateway, RDS instance in private subnet.
D.Web Server EC2 in public Subnet with Elastic IP, RDS instance in private subnet.

Answer: D
An Elastic IP address is a static, public IPv4 address designed for dynamic cloud computing. With an Elastic IP address, you can mask the failure of an instance by rapidly remapping the address to another instance in your VPC.Option A, EC2 instances in the private subnet cannot be reached from the internet. A bastion host is a server whose purpose is to provide access to a private network from an external network, such as the Internet. It does not act as a proxy to route traffic from the internet to private EC2 instances.
AWS Document says:

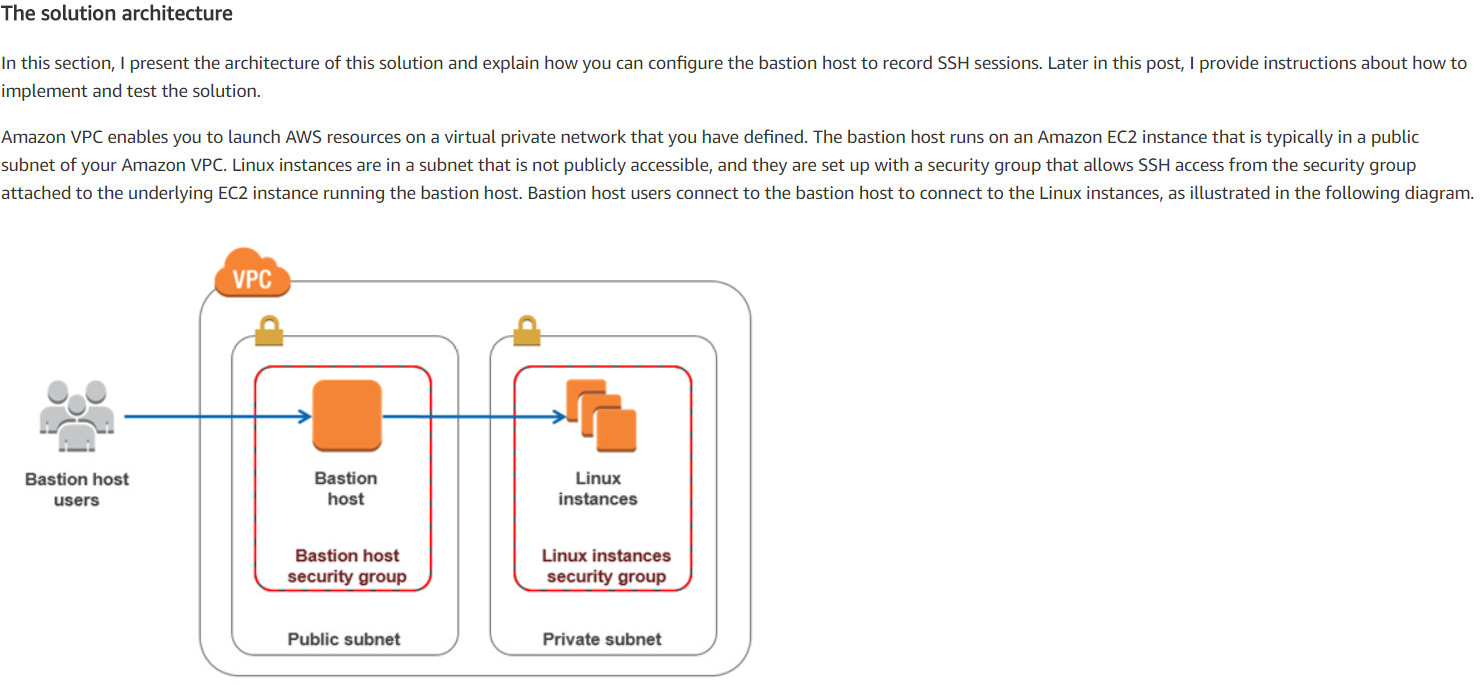

Amazon VPC enables you to launch AWS resources on a virtual private network that you have defined. The bastion host runs on an Amazon EC2 instance, typically in a public subnet of your Amazon VPC. Linux instances are in a subnet that is not publicly accessible. They are set up with a security group that allows SSH access from the security group attached to the underlying EC2 instance running the bastion host. Bastion host users connect to the bastion host to connect to the Linux instances, as illustrated in the following diagram.
Option B, with EC2 instance in the public subnet and Elastic IP attached, traffic from the internet can reach Web Server, and application works well. Although this option looks correct, this is not cost-effective since there is no use of Bastion host anywhere since the EC2 instance is already in the public subnet.
Option C, Same as option A. Although we have NAT Gateway attached to the subnet where Web Server EC2 resides, the traffic from the internet cannot reach the EC2, and NAT Gateway only routes traffic from AWS resources within a VPC to the internet. Any traffic from the internet into VPC resources is not allowed by NAT Gateway.
Option D, the Web Server EC2 instance is in public subnet with elastic IP address attached to it and RDS in private subnet which cannot be reached from the internet but only can allow traffic from EC2 in public subnet via security groups.
For more information on the Elastic IP address, please refer to the documentation.
https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/elastic-ip-addresses-eip.html
