You are taking over the AWS platform in your organization. You were asked to build a new application that would require a fleet of 20 EC2 instances inside a private VPC that should communicate with each other and no traffic going into the EC2 instances from the internet but should receive requests from all other EC2 instances inside the VPC. When you looked at the existing VPC, it was created with 10.10.0.0/24 CIDR range containing only 256 IP addresses. You noticed that 8 subnets were consuming all 256 IP addresses with /27 CIDR ranges. How can you change the CIDR range of the VPC?

Answer options:

A.Create a new VPC, setup 20 EC2 instances in new VPC and peer with existing VPC.B.Add secondary CIDR range for the VPC.C.Edit subnet CIDR ranges to /28 and free up unused IP addresses.
D.Launch EC2 instances in different subnets and setup Network ACLs and Security Groups to allow traffic between EC2 instances.

Answer: B
You can associate secondary IPv4 CIDR blocks with your VPC. When you associate a CIDR block with your VPC, a route is automatically added to your VPC route tables to enable routing within the VPC (the destination is the CIDR block and the target is local).

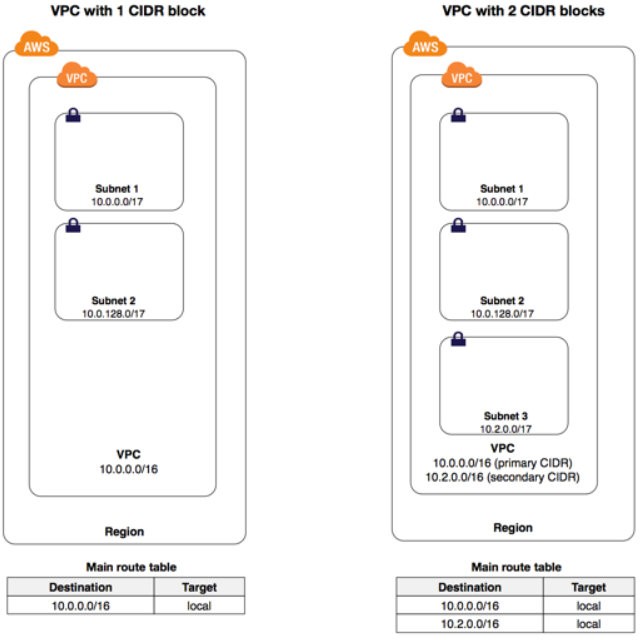

In the following example, the VPC on the left has a single CIDR block (10.0.0.0/16) and two subnets. The VPC on the right represents the architecture of the same VPC after you`ve added a second CIDR block (10.2.0.0/16) and created a new subnet from the range of the second CIDR.
https://aws.amazon.com/about-aws/whats-new/2017/08/amazon-virtual-private-cloud-vpc- now-allows-customers-to-expand-their-existing-vpcs/
For option A, although creating a new VPC, peering with the existing VPC would work, it creates a lot of configuration. This solution is suited when you want to isolate certain resources within each VPC and communicate certain resources in VPCs, or if the VPCs belong to different accounts, or if VPCs are in different regions. There is a limit of 5 VPCs per region, and creating VPCs without a definite need might hit the limit in the long run.
For option B, adding a secondary CIDR to the existing VPC is a simple configuration and can enable more IP addresses to the current VPC.For option C, a subnet’s CIDR cannot be edited once created.
Although this option works for option D, this would create a lot of complexity around setting up new Security Groups and network ACLs. This setup would be difficult to maintain and troubleshoot in case of any issues.
So, with given options, although there are multiple working solutions, option B is the recommended solution.
