A user has created a VPC with the public and private subnets using the VPC wizard. The VPC has CIDR 10.0.0.0/16. The public subnet uses CIDR 10.0.1.0/24. The user plans to host a web server in the public subnet with port 80 and a Database server in the private subnet with port 3306. The user is configuring a security group for the public subnet (WebSecGrp) and the private subnet (DBSecGrp). Which of the below mentioned entries is required in the private subnet database security group DBSecGrp?

Answer options:

A.Allow Inbound on port 3306 in the DBSecGrp with source as WebSecGrp.
B.Allow Inbound on port 3306 from source 10.0.0.0/16.
C.Allow Outbound on port 3306 in the DBSecGrp with destination as WebSecGrp.
D.Allow Outbound on port 80 for destination NAT instance IP.

Answer – A
The important point in this question is to allow the incoming traffic to the private subnet on port 3306 only for the instances in the private subnet.
Option A is CORRECT because (a) it allows the inbound traffic only for the required port 3306, and (b) it allows only the traffic from the instances in the public subnet (WebSecGrp).
Option B is incorrect because it allows the inbound traffic to all the instances in the VPC which is not the requirement.
Option C is incorrect because defining outbound traffic will not ensure the incoming traffic from the public subnet. Also, since the security groups are stateful, you need to define the inbound traffic for the public subnet only (WebSecGrp). The outbound traffic would be automatically allowed.
Option D is incorrect because you do not need to open the port 80 in this case.
More information on Web Server and DB Server Security Group settings:

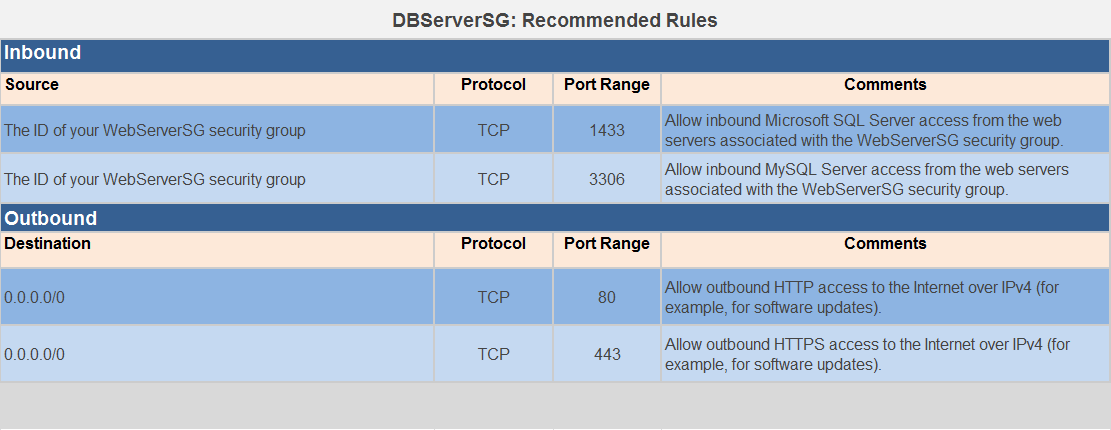

Since the Web server needs to talk to the database server on port 3306, the database server should allow incoming traffic on port 3306. The below table from the AWS documentation shows how the security groups should be set up.
For more information on security groups, please visit the below link
http://docs.aws.amazon.com/AmazonVPC/latest/UserGuide/VPC_Scenario2.html
