A user has created a VPC with public and private subnets using the VPC wizard. In this scenario, which component is NOT created by the VPC wizard?

Answer options:

A.VPC will create two main route tables associated with the public subnet and private subnet.
B.VPC will create a private subnet with a size x.x.x.x/24 IPv4 CIDR block.
C.VPC will create an Internet gateway.
D.VPC will create a NAT Gateway in the public subnet.

Answer – A
Option A is correct because only one main route table will be created. It is associated with the private subnet. A custom route table is associated with the public subnet.

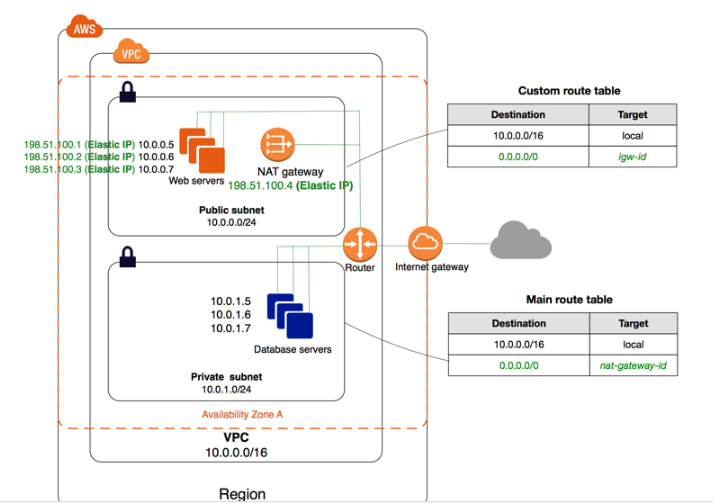

Below is the general diagram of what is created when you have a private and public subnet used when using the VPC wizard.
2 subnets – one private and one public
One NAT Gateway to route traffic from the public to private subnet
One internet gateway is attached to the VPC.Options B, C and D are incorrect because the VPC Wizard creates them by default.
For more information on VPC and subnets, please visit the URL:
http://docs.aws.amazon.com/AmazonVPC/latest/UserGuide/VPC_Scenario2.html
