An organization is trying to establish a static VPN connection between an on-premises network and an Amazon VPC. A SysOps Administrator has created the virtual private gateway., VPN connection, and the customer gateway. The customer side of the router is also configured, and the connection status shows UP in the console. However, when the Administrator attempts to connect an Amazon EC2 instance in the Amazon VPC from one of the on-premises virtual machines, it does not work.
How should the route table in the Amazon VPC subnet be modified to remediate the issue?

Answer options:

A.Add the route for the virtual private gateway.
B.Add the route for the VPC endpoint.
C.Add the route to the internet gateway.
D.Add the route for the customer gateway.

Correct Answer: A

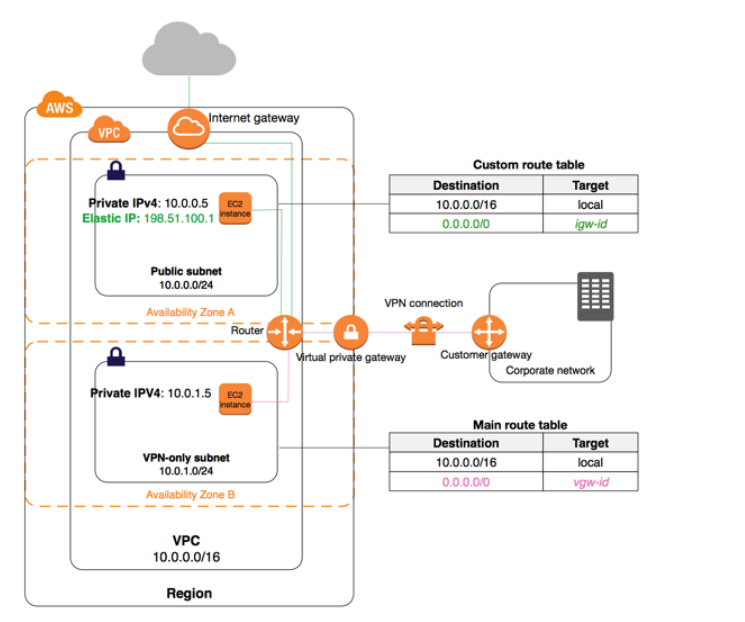

The below diagram from the AWS Documentation shows that the route needs to be added for the Virtual private gateway.
The above diagram shows the routing for a VPC with an internet gateway, a virtual private gateway, a public subnet, and a VPN-only subnet. The main route table has a route to the virtual private gateway. A custom route table is explicitly associated with the public subnet. The custom route table has a route to the internet (
0.0.0.0/0
) through the internet gateway.
If you create a new subnet in this VPC, it`s automatically implicitly associated with the main route table, which routes traffic to the virtual private gateway. If you set up the reverse configuration (where the main route table has the route to the internet gateway, and the custom route table has the route to the virtual private gateway), then a new subnet automatically has a route to the internet gateway.
All other options are incorrect since the main reason is that the Route table is not attached to the virtual private gateway.
For more information on Route Tables, please visit the below URL-
https://docs.aws.amazon.com/vpc/latest/userguide/VPC_Route_Tables.html
