Question 34:

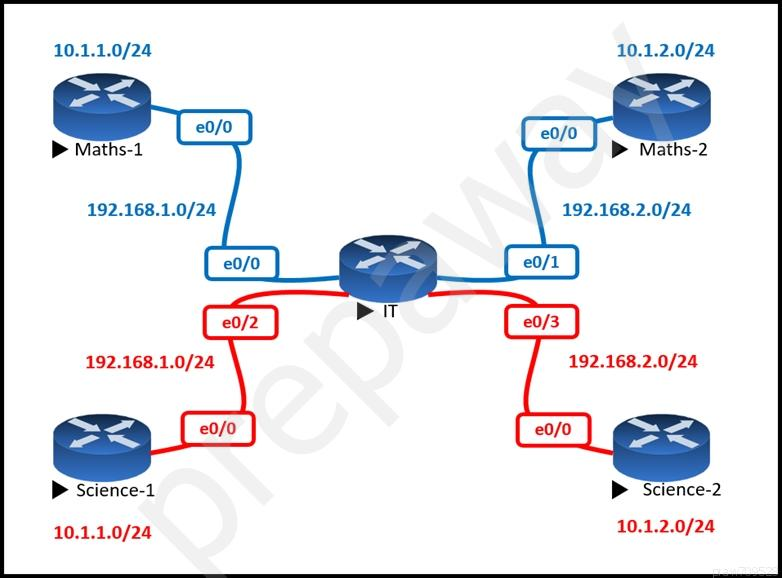

Refer to the exhibit. The Math and Science departments connect through the corporate IT router, but users in the Math department must not be able to reach the Science department and vice versa. Which configuration accomplishes this task?

Answer options:

A. vrf definition Science address-family ipv4 ! interface E 0/2 ip address 192.168.1.1 255.255.255.0 no shut ! interface E 0/3 ip address 192.168.2.1 255.255.255.0 no shut
B. vrf definition Science address-family ipv4 ! interface E 0/2 vrf forwarding Science ip address 192.168.1.1 255.255.255.0 no shut ! interface E 0/3 vrf forwarding Science ip address 192.168.2.1 255.255.255.0 no shut
C. vrf definition Science address-family ipv4 ! interface E 0/2 ip address 192.168.1.1 255.255.255.0 vrf forwarding Science no shut ! interface E 0/3 ip address 192.168.2.1 255.255.255.0 vrf forwarding Science no shut
D. vrf definition Science ! interface E 0/2 ip address 192.168.1.1 255.255.255.0 no shut ! interface E 0/3 ip address 192.168.2.1 255.255.255.0 no shut
