HOTSPOT - You have an Azure subscription named Subscription1. Subscription1 contains the virtual machines in the following table:

Subscription1 contains a virtual network named VNet1 that has the subnets in the following table:

VM3 has multiple network adapters, including a network adapter named NIC3. IP forwarding is enabled on NIC3. Routing is enabled on VM3. You create a route table named RT1 that contains the routes in the following table:

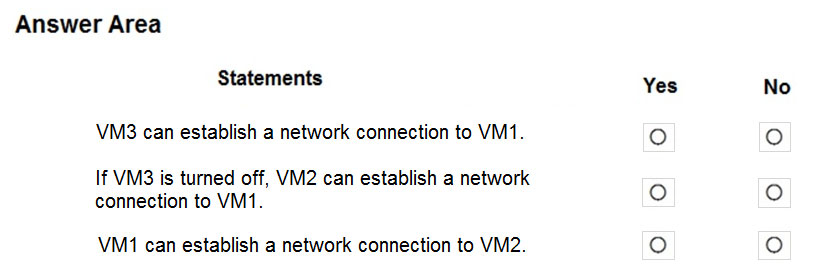

You apply RT1 to Subnet1 and Subnet2. For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point. Hot Area:

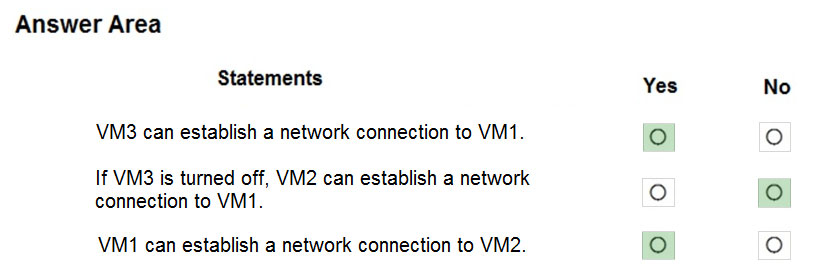

IP forwarding enables the virtual machine a network interface is attached to: ✑ Receive network traffic not destined for one of the IP addresses assigned to any of the IP configurations assigned to the network interface. ✑ Send network traffic with a different source IP address than the one assigned to one of a network interface`s IP configurations. The setting must be enabled for every network interface that is attached to the virtual machine that receives traffic that the virtual machine needs to forward. A virtual machine can forward traffic whether it has multiple network interfaces or a single network interface attached to it. Box 1: Yes - The routing table allows connections from VM3 to VM1 and VM2. And as IP forwarding is enabled on VM3, VM3 can connect to VM1. Box 2: No - VM3, which has IP forwarding, must be turned on, in order for VM2 to connect to VM1. Box 3: Yes - The routing table allows connections from VM1 and VM2 to VM3. IP forwarding on VM3 allows VM1 to connect to VM2 via VM3. Reference: https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-udr-overview https://www.quora.com/What-is-IP-forwarding
